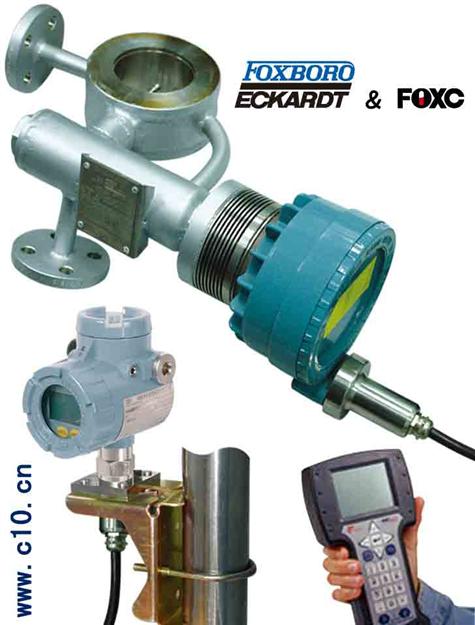

LC3144 Intelligent displacer liquid (interface) level transmitters are designed to perform measurement for liquid level, interface or density of liquids. High accuracy of the transmitter makes it especially suitable for the level or interface measurement of small range, high temperature, high pressure and low density conditions. Easy for remote configuration and supervision with PV or universal hand terminal, and also can be operated conventionally with local keys.
LC3144 displacer level transmitters are produced by both XINGSHEN and FOXBORO/ECKARDT. The sensor and key parts are originally from FOXBORO/ECKARD. The products are conformed to FOXBORO/ECKARD standard.
Measure range: liquid level: 0~5m density: 0~0.3 to 0~2.0g/cm3
Interface: density difference: 0~0.05 to 0~1.5g/ cm3
Accuracy: A class: ±0.2%FS; B Class: ±0.5%FS
Output: Analog--two wire 4~20mA DC;
Digital-- HART or FOXCOM Protocol;
FF Protocol.
Process temp.: -196~420℃ Ambient temp.: -30~85℃
Safety class: Intrinsically safe: ExiaIICT1-4; Explosion-proof:ExdIIT1-T5
Enclosure: IP65 (NAME 4X)
Connection flange:
External displacer: ANSI B16.5, HG20592-20635-97 flange standard
Internal displacer: ANSI B16.5, HG20592-20635-97 flange standard. Or on request.
Material: carbon steel, 304SS, 316SS, 316L
Order information
| LC3144LD |
Intelligent Displacer Liquid Level (Interface )Transmitter |
Model Number |
| |
1 |
HART |
Communication |
| 2 |
F. FIELDBUS |
| 3 |
FOMCOM |
| |
1 |
Q235 steel |
Body Material |
| 2 |
321 SCS321 1Cr18Ni9Ti 1.4873 |
| 3 |
316Ti OCr18Ni12Mo2Ti 1.4571 |
| 4 |
316 SVS316 OOCr17Ni12Mo2 1.4401 |
| 5 |
316L SVS316L OOCr14Ni12Mo2 1.4435 |
| 6 |
other material to be specified. |
| |
H |

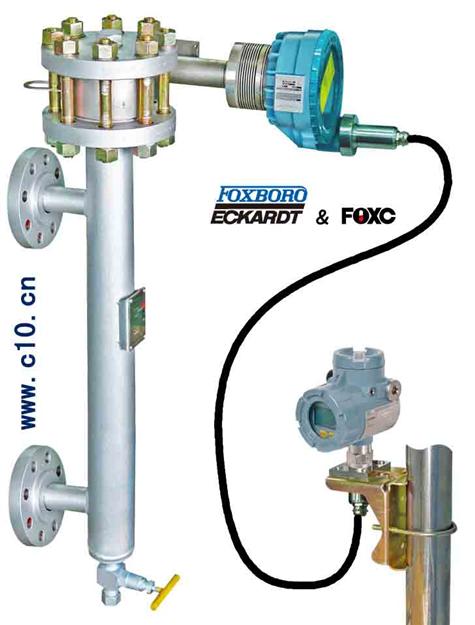

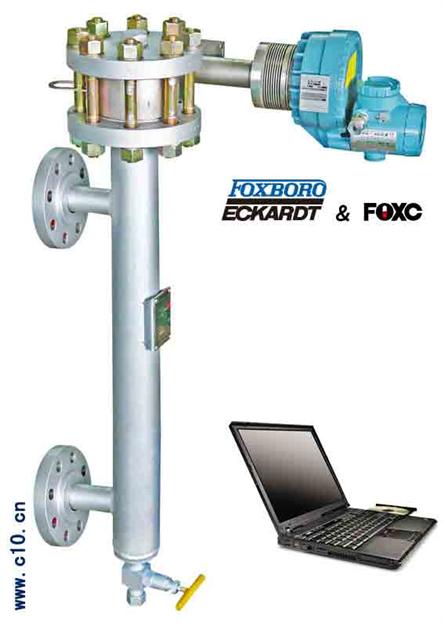

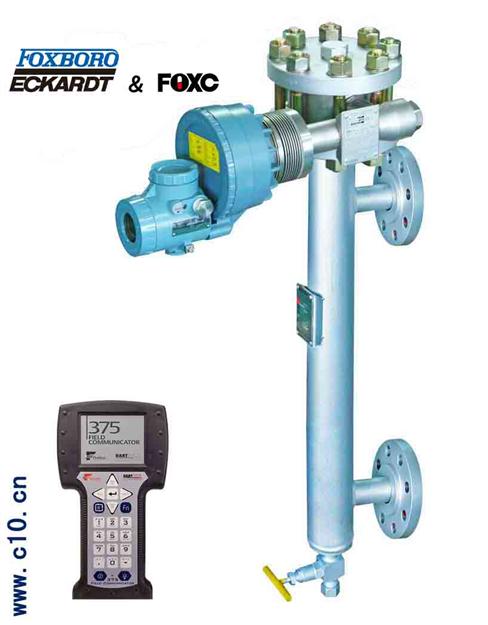

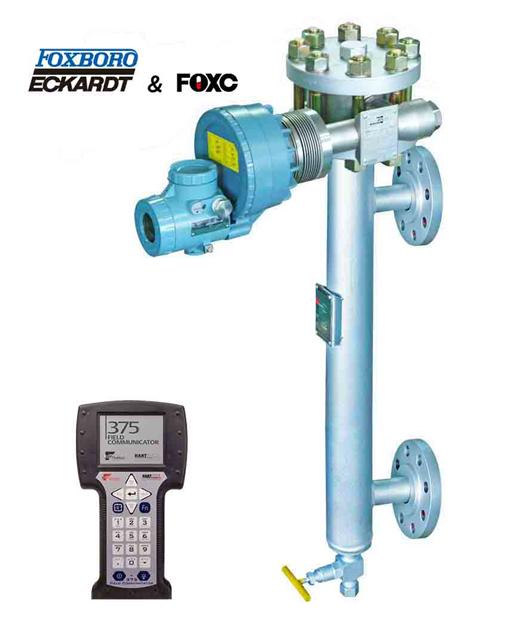

External displacer side-side mounted |
Mounting |
| C |
External displacer side-bottom mounted |
| F |
External displacer top-side mounted |
| G |
External displacer top-bottom mounted |
| N |

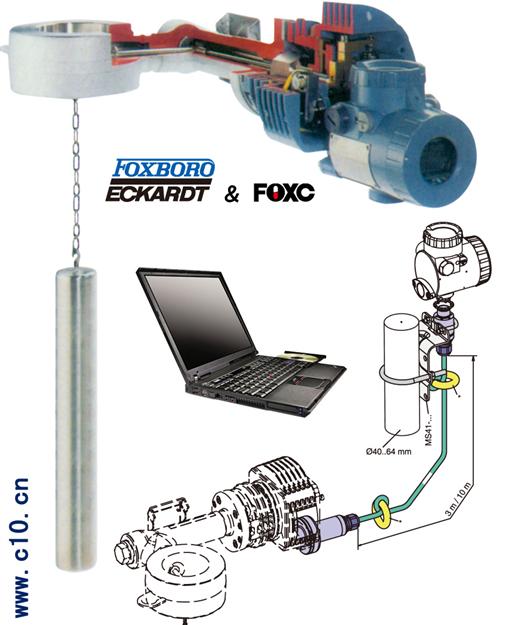

Internal displacer top mounted |
| |
1 |
For liquid level |
Service |
| 2 |
For interface |
| 3 |
For density |
| |
4/4A |
2.5MPa/Class 150LB ANSI |
Pressure
Rating |
| 5/5A |
4.0MPa/Class 300LB ANSI |
| 6/6A |
6.3MPa/Class 600LB ANSI |
| 7/7A |
16.0MPa/Class 900LB ANSI |
| 8/8A |
32.0MPa/Class 1500LB ANSI |
| 9/9A |
40.0MPa/Class 2500LB ANSI |
| |
T1 |
Normal temp.: -40℃～150℃ |
Process
Temperature |
| T2 |
High temp.: -150℃～420℃ |
| T3 |
Low temp.: -196℃～40℃ |
| |
O |
no explosion-proof |
Safety class
|
| D |
explosion-proof : ExdIICT1～T6 |
| E |
Intrinsically safe: ExiaIICT1～T6 |
| B |
with safety barrier |
| |
0 |
without heating jacket |
Optional Items |
| J1 |
heating jacket / process conn. |
| J2 |
heating jacket / process conn.JB/T82.1-94 DN15 PN1.0 |
| |
|
|
Measure Range |
| |
|
Medium Density |
