Displacer/float level switch
◆ Model：UQK6000
◆ Parameters：UQK6000、Up to 20MPa、Tri-magnetic level switch 、High reliability 、ANSIB31.1 STD
Product Overview
UQK6000 float level switches are designed as per ANSIB31.1 standard for a high temperature and high pressure applications. The advanced tri-magnet driven switch is of rational structure and good stability, it can identify the switch movement precisely even under rugged conditions. UQK6000 float level switches are applicable for level control, alarm and cascade failure of open vessel, and high temperature high pressure process conditions in the fields of petrochemical, power, food, pharmaceuticals and etc.

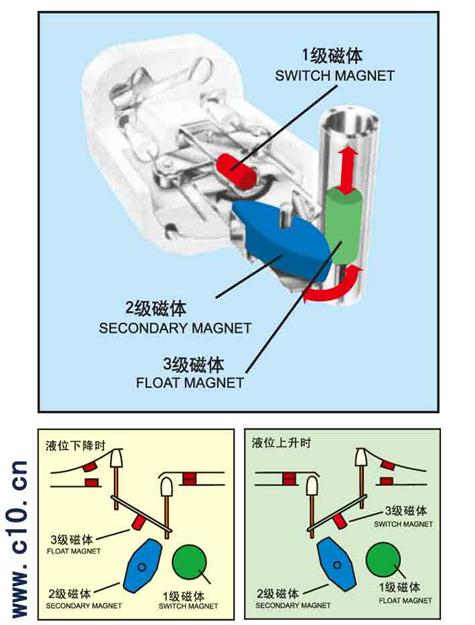

Structure Principle
Order Information
| UQK6000 |
High Temperature High Pressure Float Level Switch |
|
Model Number |
| |
|
Rated pressure/temperature |
chamber material |
float mateial |
process connnection |
|

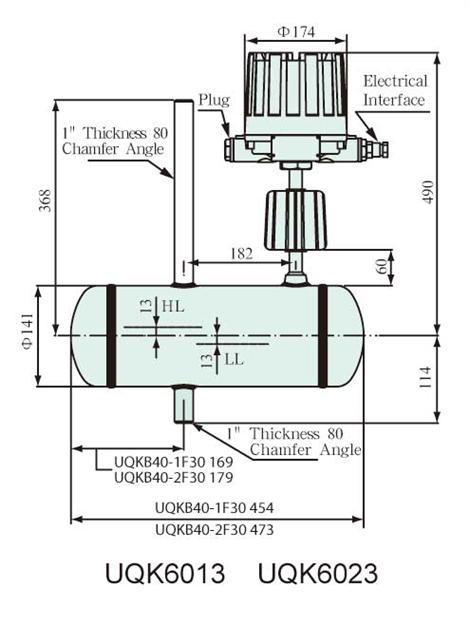

| 13 |
@12MPa ≤427℃ |
Cr-Mo Alloy |
316L/347 |
1" weld pipe |

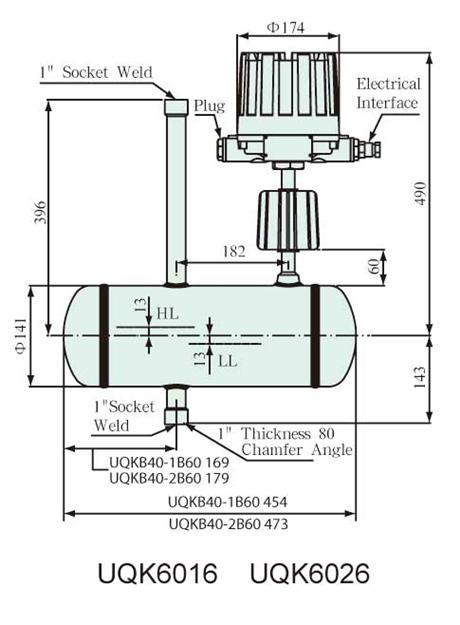

| 16 |
@16.0MPa≤538℃ |
Cr-Mo Alloy |
316L |
1" weld pipe |
| 23 |
@18.5MPa≤427℃ |
SS304 |
316L |
1" weld pipe |
| 26 |
@17.6MPa≤427℃ |
SS304 |
316L |
1" socket weld |
| 33 |
@120MPa≤370℃ |
SS304 |
316L |
11/2"socket weld |
| 44 |
@114MPa≤200℃ |
SS316 |
316L/347 |
11/2" socket weld |

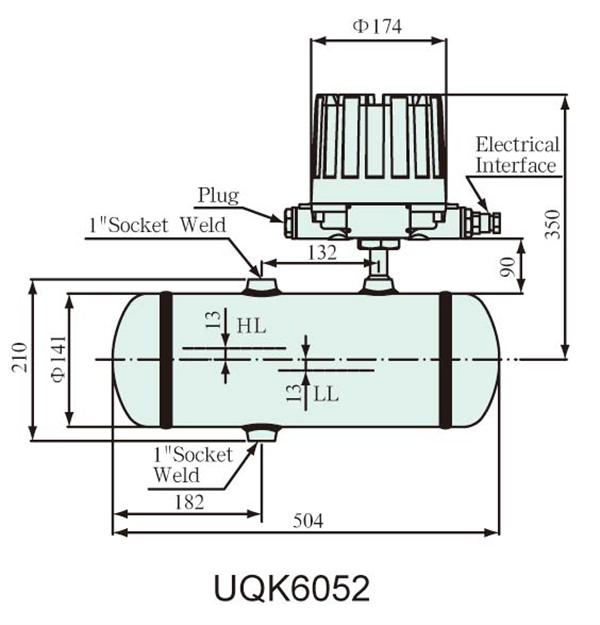

| 52 |
@19.3MPa≤399℃ |
CS |
316L/347 |
1" socket weld |
| 66 |
other parameter to be specified by customer. |
|
A/F |
2.5MPa/Class 150LB ANSI |
Pressure
rating |
| B/G |
4.0MPa/Class 300LB ANSI |
| C/H |
6.3MPa/Class 600LB ANSI |
| D/I |
16.0MPa/Class 900LB ANSI |
| E/J |
32.0MPa/Class 1500LB ANSI |
|
F |
tri-magnet driven switch 2*SPDP |
Contact Form |
| N |
tri-magnet driven switch DPDT |
| |
-□□□□ |
Medium density
kg/m3 |
|
