Magnetostrictive level transmitter
Magnetostrictive level transmitter

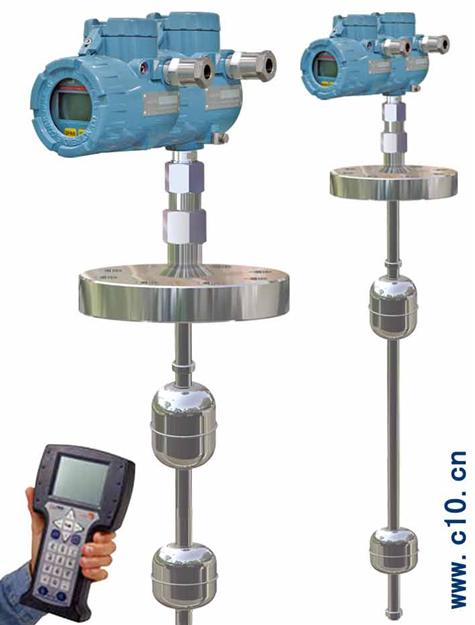

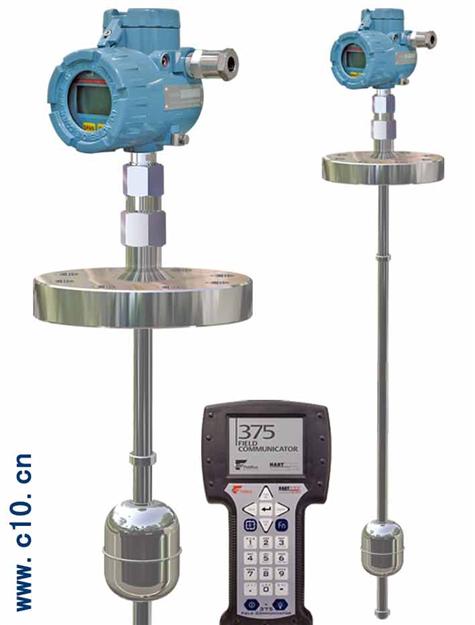

◆ Model：AT100A
◆ Parameters：AT100A、Flange top mounted; Rigid probe、High accuracy; Strong stability、HART communication、Support dual floats dual levels dual outputs
Product Overview
AT100 Intelligent Magnetostrictive Liquid Level Transmitter is developed by USA FOX INSTRUMENTS in recent years. It is a measure instrument of high accuracy, wide range, strong reliability, high permissible temperature, multiple mounting type, easy debugging and high cost performance.
Structure Principle

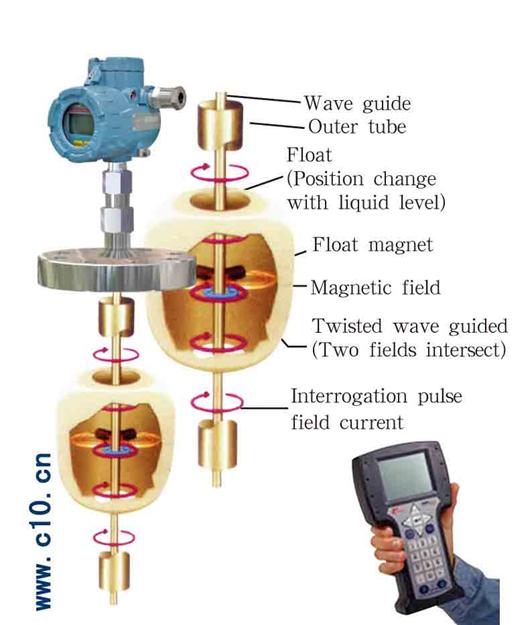

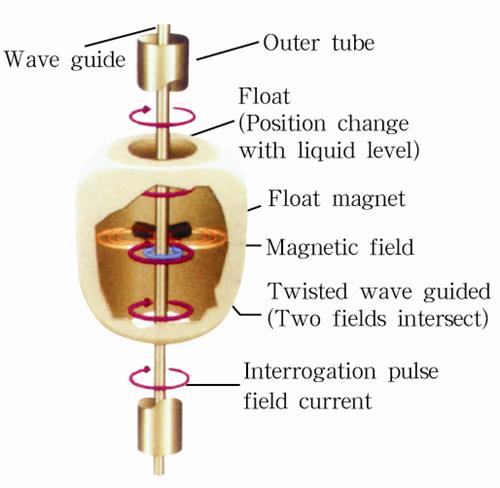

AT100 series Intelligent Magnetostrictive Liquid Level Transmitter is composed of magnetism –insulation stainless steel tube (measuring pole), magnetostrictive line (guided wave line), movable magnetic floater and electronic parts etc. Impulse generator emits a current impulse (inception impulse) along with guided wave line. The magnetic field produced by the current impulses combines the magnetic circle and magnetic field vector in floater and generates spiral magnetic field. It will result in instantaneous torsion, makes guided wave line twist and produce terminal impulse, and then the terminal impulse will go back along with guided ware line. By measuring the time between the inception impulse and terminal impulse, the liquid level can be decided.
| AT100 |
Magnetostrictive Level Transmitter |
Model No. |
| |
B |
316L（std.） |
Wetted
material |
| H |
hastelloy c-276 |
| F |
316L lined PTFE |
| R |
304SS |
| T |
Titanium (Ti) |
| Z |
Zirconium (Zr) |
| |
A |
flange top mounted, standard rigid probe rod |
Process
connection |
| B |
side-side flange mounted + external displacer |
| C |
external displacer side binding type (rigid single rod) |
| D |
flange top mounted, stainless steel flexible probe rod |
| |
0 |
Single output,measure one liquid level,without HART |
Signal output |
| 1 |
Single output,measure one interface level,without HART |
| 2 |
Single output,measure one liquid level,HART |
| 3 |
Single output,measure one interface level,HART |
| 4 |
two-circuit isolated output , measure one liquid & one interface level, HART |
| 5 |
two-circuit isolated output, measure one liquid level & one temperature,HART |
| 6 |
two-circuit isolated output, measure one temperature & one interface level, HART |
| 7 |
three-circuit isolated output, measure one liquid level,one interface level& one temperature, HART |
| 8 |
four-circuit isolated output, measure one liquid level,one interface level& one temperature, HART |
| |
0 |
no pressure rating (side binding type) |
Pressure rating |
| 1 |
PN 2.5Mpa |
| 2 |
PN 4.0Mpa |
| 3 |
PN 6.4Mpa |
| 4 |
PN 11.0Mpa |
| 5 |
PN 16.0Mpa |
| 6 |
PN 25Mpa |
| 7 |
PN 40Mpa |
| 8 |
Class 150LB ANSI |
| 9 |
Class 300LB ANSI |
| 10 |
Class 400LB ANSI |
| 11 |
Class 600LB ANSI |
| 12 |
Class 900LB ANSI |
| 13 |
Class 1500LB ANSI |
| 14 |
Class 2500LB ANSI |
| |
1 |
DN20（3/4''） |
Nominal diameter |
| 2 |
DN25（1''） |
| 3 |
DN40（11/2''） |
| 4 |
DN50（2''） |
| 5 |
DN65（2.5''） |
| 6 |
DN80（3''） |
| 7 |
DN100（4''） |
| 8 |
DN125（5''） |
| 9 |
DN150（6''） |
| |
A |
-196℃～121℃ |
Rated temperature |
| B |
-45℃～121℃ |
| C |
-45℃～232℃ |
| D |
-45℃～427℃ |
| |
O |
Common type |
Ex-poof certificate |
| D |
Explosion proof: ExdIICT2～T6 |
| E |
Intrinsic safe: ExiaIICT2～T6 |
| |
kg/m³ |
Medium desntiy 1 |
| |
kg/m³ |
Medium desntiy 2 |
| |
mm |
Measure span |
| |
mm |
Mounting height |
|
