BK-1/EX Tri-magent Switch

◆ Model:BK-1/EX
◆ Parameters:BK-1/EX、Tri-magent Switch、、、

View product specs

Product Overview

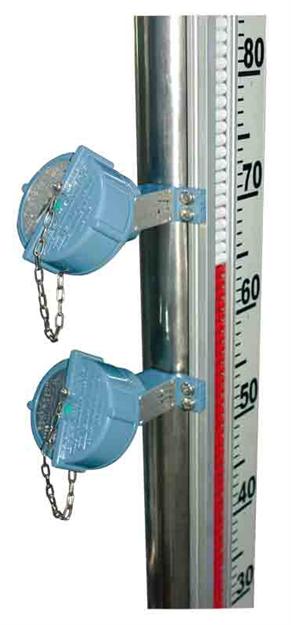

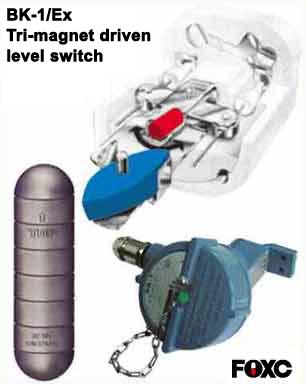

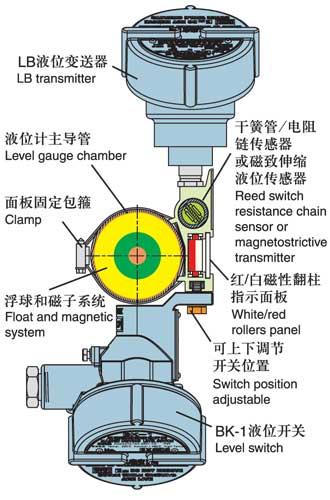

BURGESS BK-1/EX Tri-Magnet Level Switch, as the most reliable and practical level switch in the world, has bistable memory function. Mounted on the indicator, in the same magnetic coupling system with level gauge, not contact with the process medium, this level switch is high-temperature resistant, explosion proof and shockproof. It utilizes three magnetic coupling burst switches. When the magnetic float (the first magnet steel) in the chamber close to the switch, the second magnetic component will rotate, meanwhile the third magnet steel in the switch will rotate reversely and the push bar will actuate the switch.

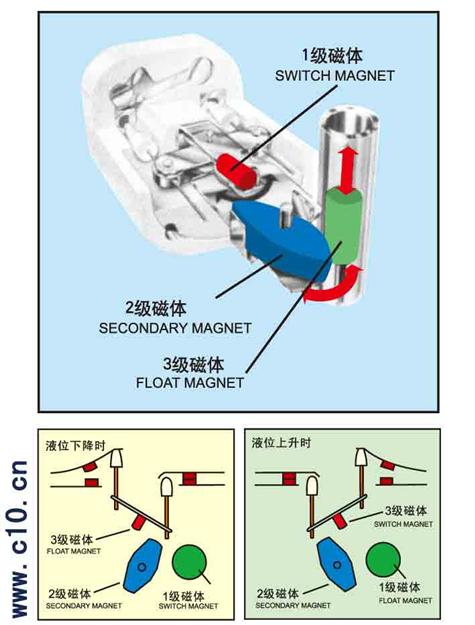

Structure Principle
