Features
l Simple structure principle, while extremely wide applications;
l Continuous measurement, get liquid data reliably without influence of physical or chemical condition of medium, e.g. bubble/foam, conductivity rate, pressure, vacuum, temperature, evaporation and density change.
l Easy mounting, only necessary to calibrate before use;
l Remote transmission signal;
l Good repeatability;

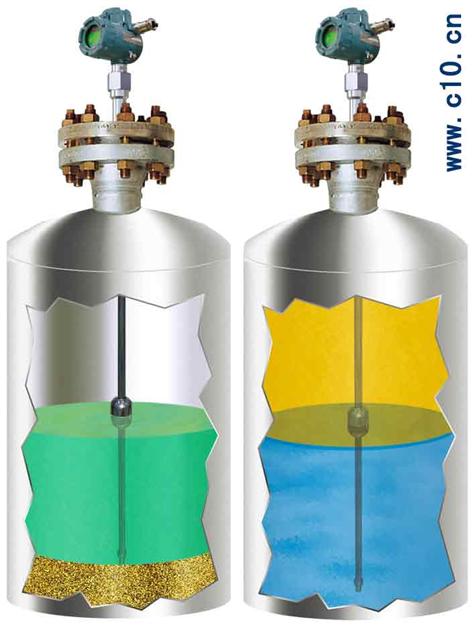

l Can measure interface, density difference ≥50Kg/m³
l Temperature range: -80~100℃
l Vacuum pressure up to10Kpa
l Density≥400Kg/m³
l Strong anti-corrosion ability, applied for various industries: chemical, petrochemical, nature gas, pharmaceuticals, offshore exploration, ship building, power generation, propulsion system, machinery, water purification installation, beverage and food industry.
Order Information
| UHZ-517B |

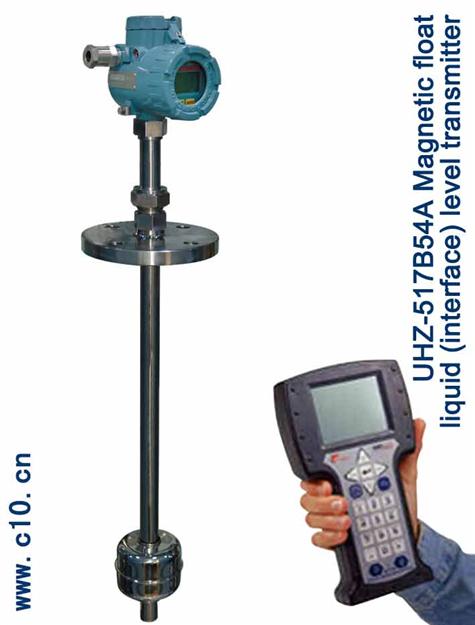

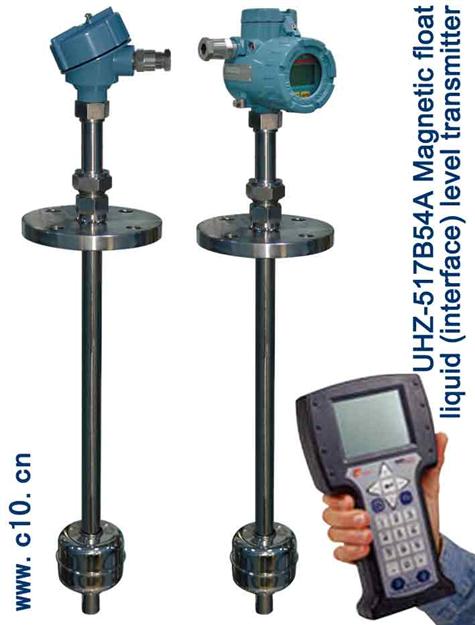

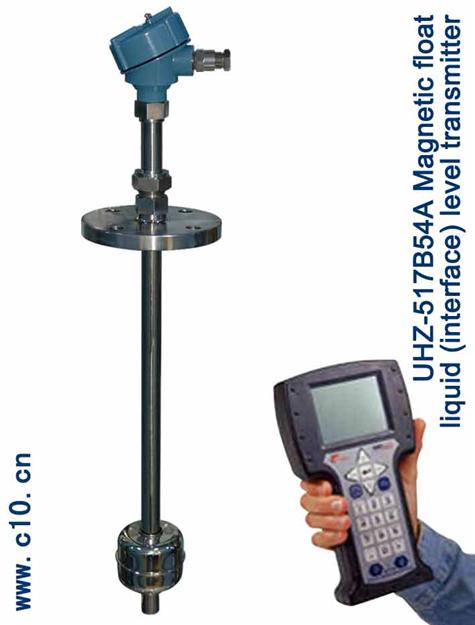

Magnetic float level(interface) transmitter |
Model number |
| |
4A |
standard type wetted: 304SS/316L ；temperature：-35～120℃ DN150 PN1.0/4.0 |
Basic type |
| 4B |
standard type wetted :304SS/316L/TI ；temperature：-35～120℃ DN50 PN1.0/4.0 |
| 3A |
anti-corrossive type wetted: PPR/PP ；temperature：-35～80℃ DN100 PN1.0 |
| 3B |
anti-corrossive mini float type wetted: PPR/PP ；temperature：-35～80℃ DN50 PN1.0 |
| 7 |
anti-corrossive type wetted : PTFE ；temperature: -35～120℃ DN100 PN1.0/4.0 |
| 8 |
sanitary type wetted: 316L/Ti ；temperature：-35～120℃ 三叶 DN50 |
| 9 |
high viscosity type wetted: 304SS ；temperature：-35～120℃ DN150 PN1.0/2.5 |
| |
O |
water proof type |
Options |
| D |
explosion proof : ExdIIBT1～T6 |
| E |
intrinsic safe: ExiaIICT1～T6 |
| S |
field LED display |
| |
S |
field LED display |
Indication |
| H |
digital display with HART |
| |
□ |
Measure span (mm) |
| |
□ |
Mounting height（mm) |
| |
□ |
Medium denstiy（kg/m³） |
| |
D |
ATM |
Pressure |
| □ |
rated pressure |
