Glass level gauge
◆ Model：UB-M
◆ Parameters：UB-M、Big diameter type、、、
Product Overview
UB common/high temperature/high pressure /low temperature frost proof glass level gauge can directly indicate liquid level for various industrial vessels. Heat treatment borosilicate glass is used when working temperature below 260℃;special heat treatment aluminosilicate glass is used when working temperature above 260℃ and mica coated on the wetted part when medium temperature is 420℃.

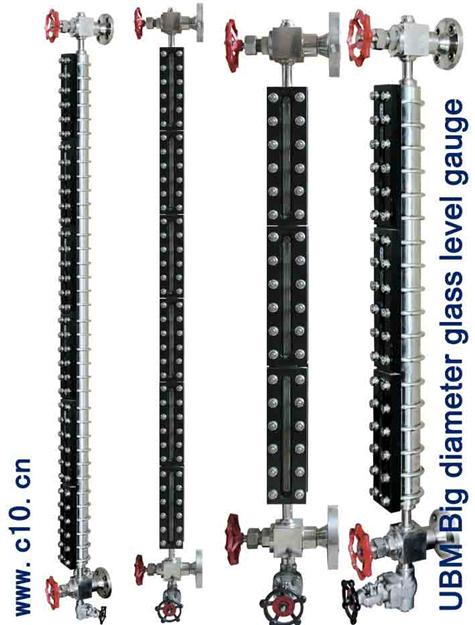

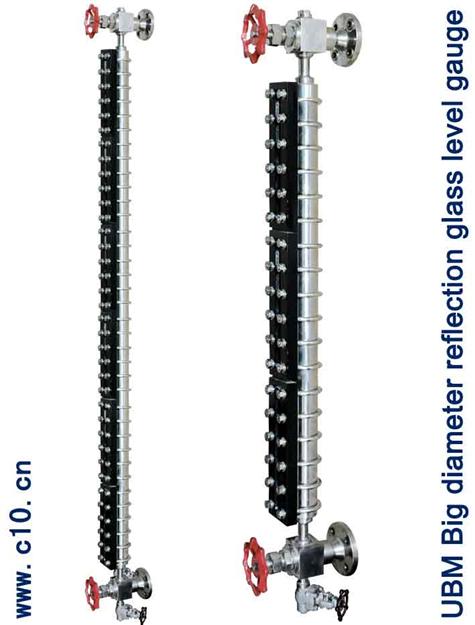

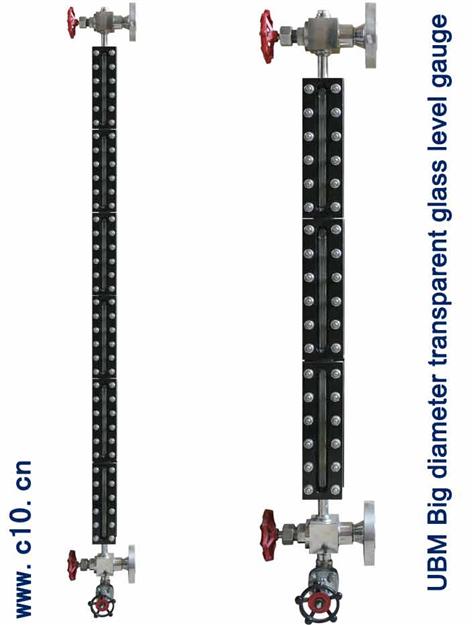

UB big diameter glass liquid level gauge is designed for level measure viscous and non-crystallographic medium in petrochemical device. Wide measure range, big diameter, fast flow, no clogging and no blind area at both ends, it is especially for liquid level measure of flammable, explosive and viscous medium.
UB low temperature frost proof glass liquid level gauge is designed for low temperature medium; via frost-proof wing, medium level can be clearly observed. It is safe, reliable and endurable.
Structure Principle
| UB |
Common/High temp./High pressure/ low temp. frost proof glass level gauge |
Model |
| |
25 |
Class 150LB ANSI PN2.5Mpa |
Pressure
rating |
| 60 |
Class 300LB ANSI PN6.4Mpa |
| 100 |
Class 600LB ANSI PN10.0Mpa |
| 160 |
Class 900LB ANSI PN16.0Mpa |
| |
A |
transparent, for colorless and transparent liquid in good light condition |
Basic
type |
| B |
transparent with heating jacket, for cold place or liquid need to be heated condition |
| C |
reflex, for colored liquid in good light condition |
| D |
reflex, with heating jacket, for cold place or liquid need to be heated conditions |
| E |
bicolor transparent (Not recommended) |
| F |
transparent low temp. frost proof, for low temperature, colorless liquid in good light condition |
| G |
reflex low temp. frost proof, for low temperature, colored liquid in good light condition |
| M |
big diameter type, for colorless liquid, sensitive indication, rated pressure≤4.0Mpa |
| |
1 |
high borosilicate glass，T≤260℃ |
Temperature and glass |
| 2 |
high borosilicate glass, wetted part with mica |
| 3 |
aluminosilicate glass，260℃≤T≤450℃ |
| 4 |
aluminosilicate glass，wetted part with mica |
| |
3 |
Q235-A CS |
5 |
321 |
Wetted material |
| 4 |
304 |
6 |
316L |
| |
TB |
top-bottom mounted (std.) |
Mounting |
| SL |
side-side left mounted |
| SR |
side-side right mounted |
| EL |
side-side ring pipe left mounted |
| ER |
side-side ring pipe right mounted |
| |
|
C-C mm） |
|
