RF capacitance level transmitter

◆ Model:UYB-2000L
◆ Parameters:UYB-2000L、Cost effective 、Easy to install、Two buttons for calibration、

View product specs

Product Overview

UYB-2000 Intelligent RF Capacitance Level Transmitter operates on RF capacitance detecting technique and temperature compensation principle in industry measurement system. Besides the advantages of traditional capacitance level detecting technique, it also rooted the shortcomings of great temperature drift, worse linear detecting and resolution which are the difficulties hard to resolve with traditional capacitance measurement. It can be used for liquid level measure of relative stable solvent medium and solid level measure of dry powder or granular particles.



Structure Principle

As level varies directly with the capacitance caused by probe, with temperature compensation in measure system and special operation processing software, the measured capacitance outputs 4~20mA analog signal and RS-485 communication serial interface.



Features

l   SCM intelligent design and no limitation of measure range

l   Calibration between 0.2~20m, easer calibration procedure

l   With universal feature and interchangeability, simple two-keys calibration

l   With status and fault indication and analysis function

l   PTFE probe of good corrosion resistance, applicable for acid, alkali and other corrosive liquids

l   Two wire 4~20mA output, LED loop power field display.

l   Auto temperature compensation of measure system

l   Optional medium temperature compensation module

l   Continuous liquid level, material level and interface level

l   Modularization design, flexible extended functions, high interchangeability

l   Perfect linearization measure, much smaller resolution measuring unit

l   Superior technology, strong stability and reliability, high pressure and strong anticorrosion ability

l   With self diagnosis



Order Information

UYB-2000

Intelligent RF Capacitance Level Transmitter

Model



P

PPR single rod

Probe rod

F

PTFE single rod

T

PTFE coaxial type

L

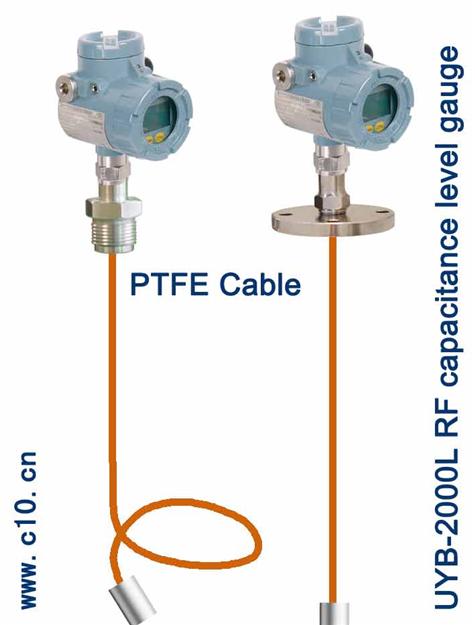

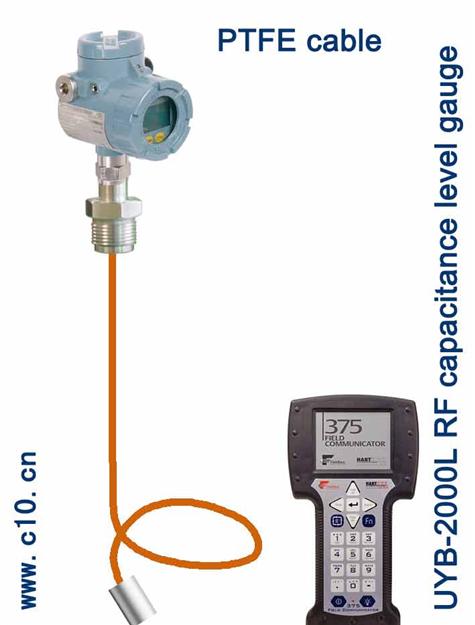

PTFE cable type


F

Flange connection DN25 PN2.5MPa

Process
 connection

P

Thread connection  G1''/  1''NPT

R

Sanitarythree-blade sanitary flange DN25

G

other connection to be specified


H

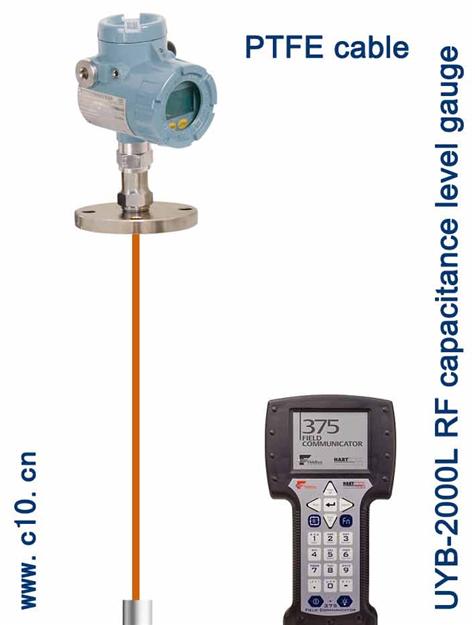

HART

Options

W

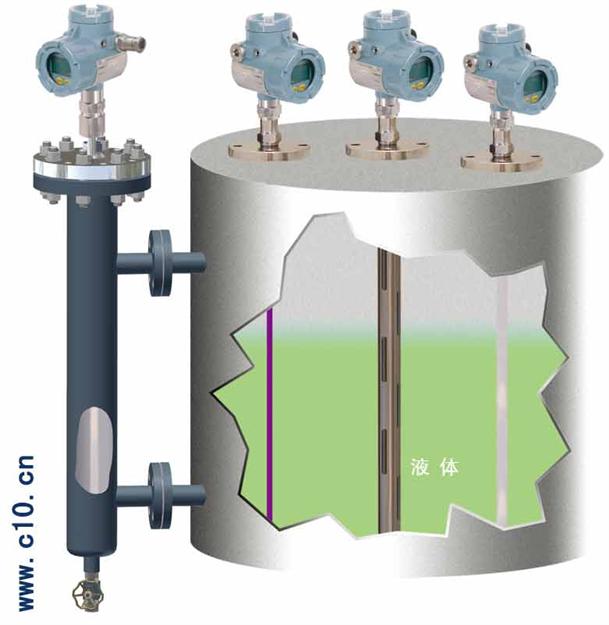

External displacer

B

Wave proof pipe

D

Ex-proof: ExdIIBT4T6

E

Intrinsic safe: ExiaIICT4T6


Mounting height(mm)



Measure range(mm)
